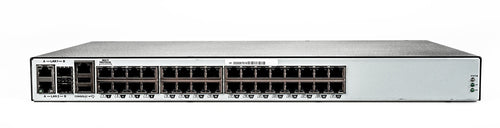

Vertiv Avocent ACS8032DDC-400 console server
Vertiv Avocent ACS8032DDC-400 console server
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 22 - Oct 26
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| Rack mounting | Yes |
| Internal modem | No |
| Zero Touch Provisioning (ZTP) | Yes |
| Web-based management | Yes |
| Temperature sensor | Yes |
| Product colour | Black |
| Event logging | Yes |
| Management features | |
| Management protocols | CLI, HTTP/ HTTPS, SNMP |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| Authentication method | LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP) |
| IP address filtering | Yes |
| One-time password (OTP) | Yes |
| Ports & interfaces | |
| Console port | RJ-45 |
| Serial ports quantity | 32 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP module slots quantity | 2 |
| AC outlet types | C13 coupler |
| Software | |
| Operating system installed | Embedded LINUX |
| Technical details | |
| Safety | UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Weight & dimensions | |
| Dimensions (WxDxH) | 438.2 x 241.3 x 44.5 mm |
| Weight | 3.4 kg |
| Power | |
| Power source type | DC |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 11 W |
| Input current | 0.5 A |
| DC input voltage | -48 V |
| Number of power supply units | 2 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Memory | |
| Internal memory | 1000 MB |
| Flash memory | 16000 MB |
| RAM capacity | 1024 MB |
| RAM type | DDR3L |
| eMMC capacity | 16 GB |
| Processor | |
| Processor family | ARM Cortex-A9 |
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 667 MHz |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber |
