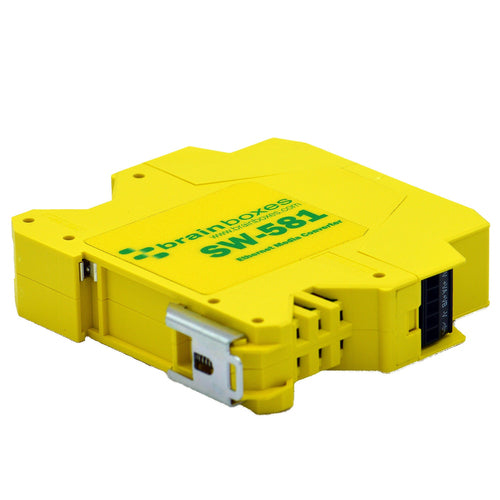

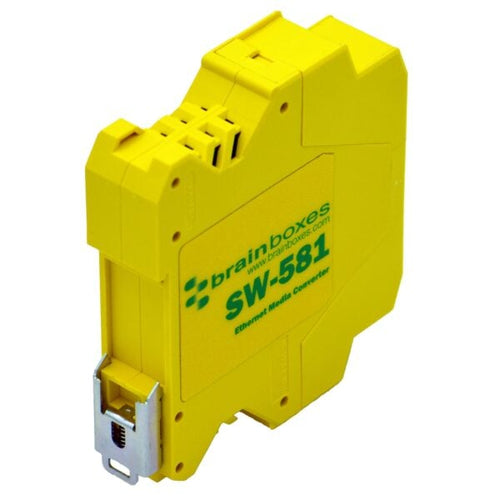

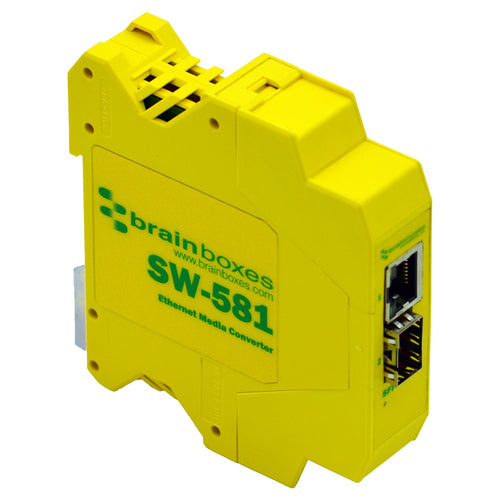

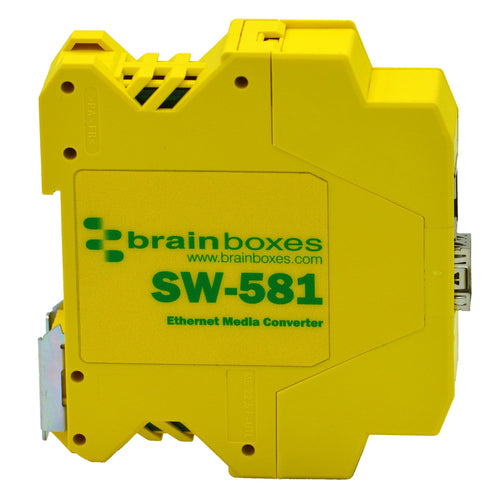

Brainboxes SW-581 network media converter
Brainboxes SW-581 network media converterRegular price
€150,95 EUR
Sale price
€150,95 EUR
Regular price
Tax included.
Taxes and Shipping calculated at checkout.
Brainboxes Industrial Ethernet Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, 10,100,1000 Mbit/s, 1000BASE-X, Yellow, Polyamide
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 21 - Oct 25
Share this product
Couldn't load pickup availability
Information
Information
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-X |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto MDI/MDI-X | Yes |
| Features | |
| Internal | No |
| Plug and Play | Yes |
| Product colour | Yellow |
| Housing material | Polyamide |
| International Protection (IP) code | IP20 |

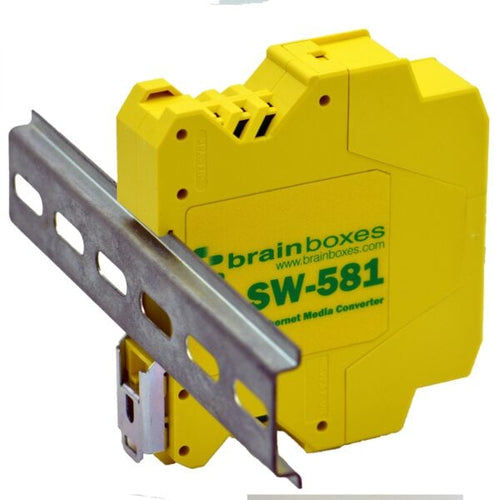

| DIN rail mounting | Yes |
| Power protection features | Over current |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Output voltage | 5 - 30 V |
| Power consumption (max) | 3.3 W |
| Power over Ethernet (PoE) | No |

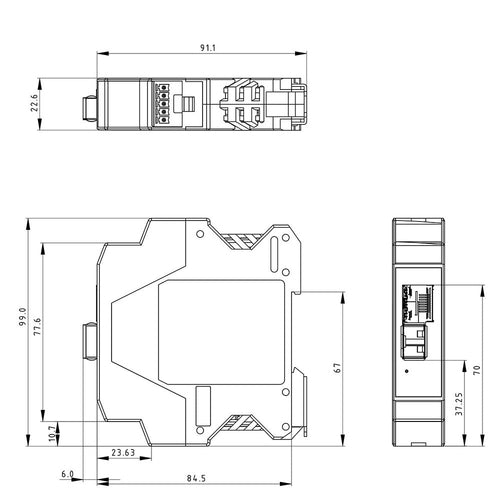

| Weight & dimensions | |
| Width | 99 mm |
| Depth | 95 mm |
| Height | 22 mm |
| Weight | 90 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 187 g |
| Certificates | |
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
| Logistics data | |
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
| Harmonized System (HS) code | 851762 |
| Other features | |
| Form factor | DIN rail |
| MAC address table | 1000 entries |
